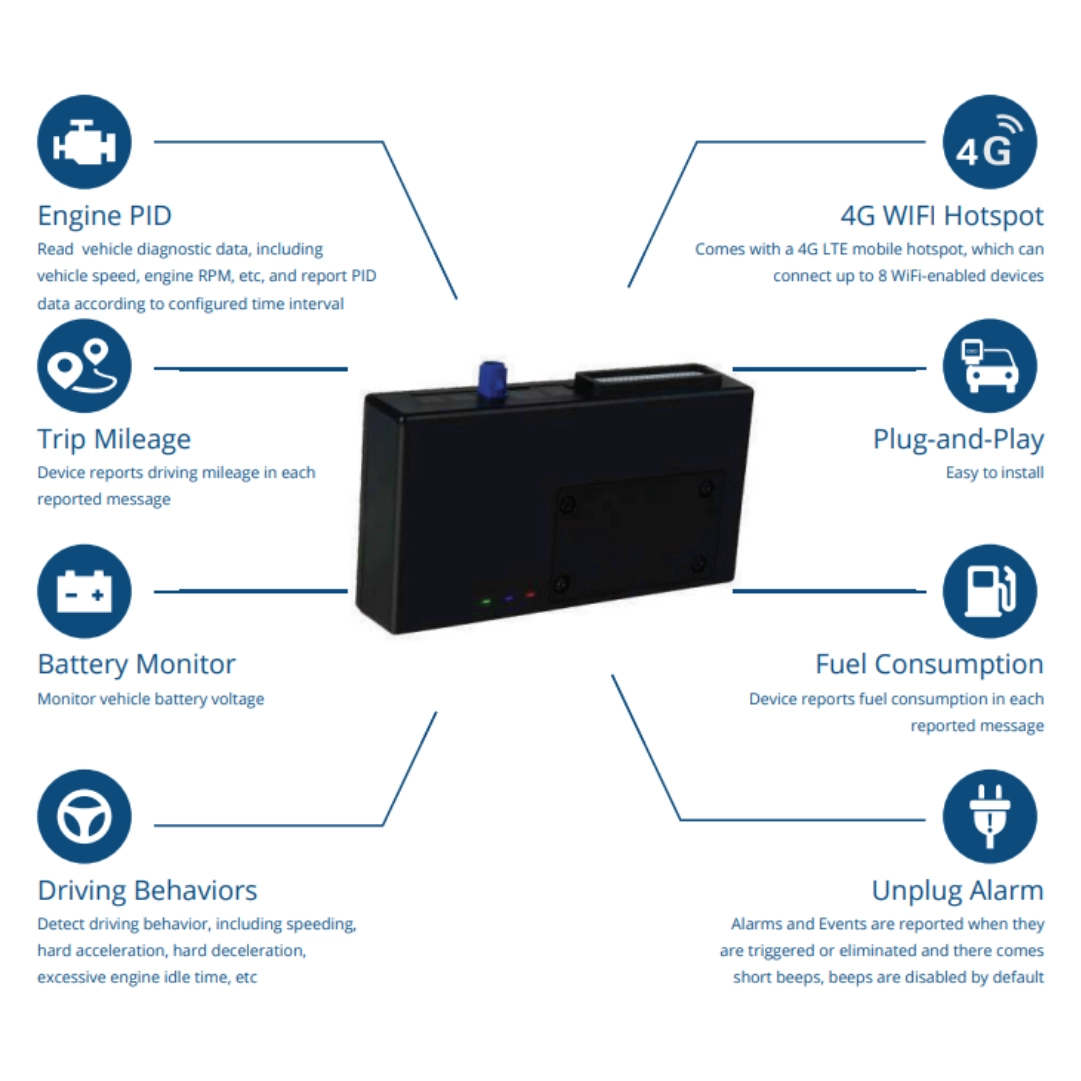

V-115 GPS

The V-115 is a compact OBD-II GPS tracking device with built-in 4G LTE connectivity, WiFi hotspot capability, and Bluetooth support. Designed for modern fleet and vehicle applications, it provides real-time tracking along with a range of diagnostic and performance insights. Its plug-and-play design makes installation fast and simple, while multiple onboard sensors and interfaces enable advanced reporting.

Key Features

• 4G LTE Connectivity — Enables reliable data transmission and communication across supported networks.
• Built-In 4G WiFi Hotspot — Allows up to eight WiFi-enabled devices to connect through the onboard hotspot.
• Engine PID Data — Reads vehicle diagnostic information such as speed, RPM, and other PID values at configured intervals.
• Trip Mileage Reporting — Provides mileage details for each tracked trip.
• Battery Voltage Monitoring — Reports vehicle battery voltage levels for proactive maintenance.
• Fuel Consumption Reporting — Sends fuel usage data in each recorded message.
• Driving Behavior Analysis — Detects and reports behaviors including speeding, harsh acceleration, harsh braking, and extended idling.
• Unplug Alarm — Alerts when the device is removed or tampered with; audible alerts can be disabled if needed.
• Simple Plug-and-Play Installation — Connects directly to the OBD-II port — no tools required.

Specifications

• Size: 140(L) × 74(W) × 28(H) mm
• Weight: 100g
• Positioning Method: GPS
• GPS Frequency: 1575.42 MHz (GPS L1)
• Network Band: 4G
• Data Transmission: Packet data (GPRS / HSPA / LTE) and SMS
• Storage: 8MB flash, supports up to 96,000 GPS data records
• WiFi: 2.4–2.4835 GHz, IEEE 802.11 b/g/n
• Working Temperature: –30°C to +70°C
• Storage Temperature: –40°C to +85°C

Applications

Fleet management · Vehicle tracking · Car service operations · Vehicle insurance · Car rental · Mining · Construction · And more
